NSK C-UCF217D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
C-UCF217D1
Included products
Bearing
Housing
F217D1
Housing

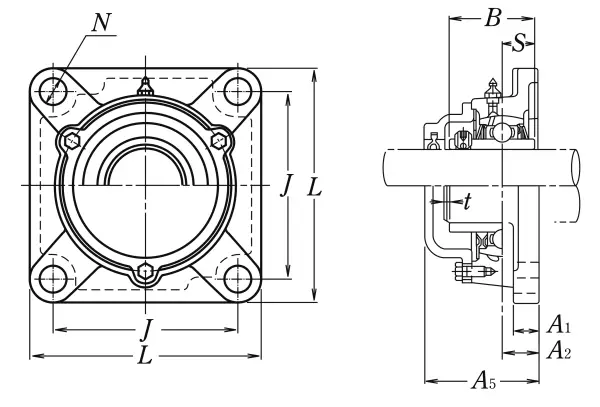

Nominal Dimensions
d
85
mm
Bore diameter
L
220
mm
Overall length
J
175
mm
Distance between attachment bolts
N
23
mm
Diameter of attachment bolt hole
A2
36
mm
Flange width
A1
24
mm
Flange width
A5
114
mm
Width including end cover
A0
87.6
mm
Overall width
B,B1,B2
85.7
mm
Width of inner ring
t
5
mm
Clearance
S
34.1
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M20
Bolt size
Basic Load Ratings
Cr
83.5
kN
Basic dynamic load rating
C0r
64
kN
Basic static load rating
Mass
mass
12
kg
Mass approx.
