NSK C-UCF307D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
C-UCF307D1
Included products
Bearing
Housing
F307D1
Housing

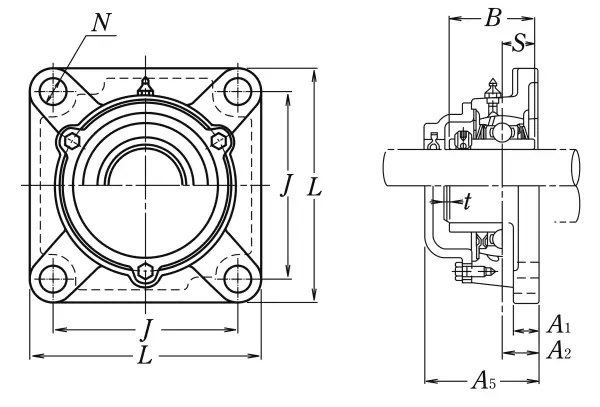

Nominal Dimensions
d
35
mm
Bore diameter
L
135
mm
Overall length
J
100
mm
Distance between attachment bolts
N
19
mm
Diameter of attachment bolt hole
A2
20
mm
Flange width
A1
16
mm
Flange width
A5
68
mm
Width including end cover
A0
49
mm
Overall width
B,B1,B2
48
mm
Width of inner ring
t
3
mm
Clearance
S
19
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M16
Bolt size
Basic Load Ratings
Cr
33.5
kN
Basic dynamic load rating
C0r
19.1
kN
Basic static load rating
Mass
mass
2.6
kg
Mass approx.
