NSK C-UCFS319D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
C-UCFS319D1
Included products
Bearing
Housing
FS319D1
Housing

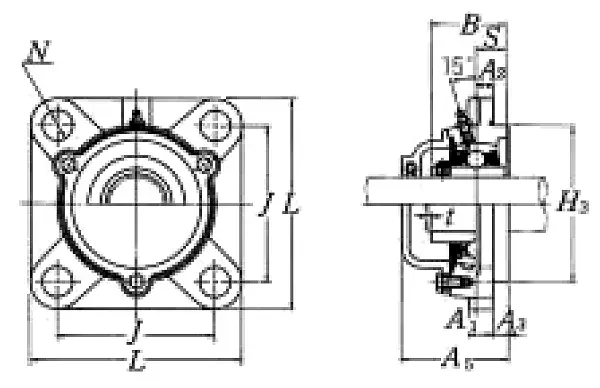

Nominal Dimensions
d
95
mm
Bore diameter
L
290
mm
Overall length
H3
250
mm
Outer diameter of Spigot Joint
J
228
mm
Distance between attachment bolts
A3
20
mm
Height of of Spigot Joint
A2
39
mm
Flange width
A1
30
mm
Flange width
A5
149
mm
Width including end cover
B,B1,B2
103
mm
Width of inner ring
t
5
mm
Clearance
S
41
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M30
Bolt size
Basic Load Ratings
Cr
153
kN
Basic dynamic load rating
C0r
119
kN
Basic static load rating
Mass
mass
28
kg
Mass approx.
