NSK C-UCFS322D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
C-UCFS322D1
Included products
Bearing
Housing
FS322D1
Housing

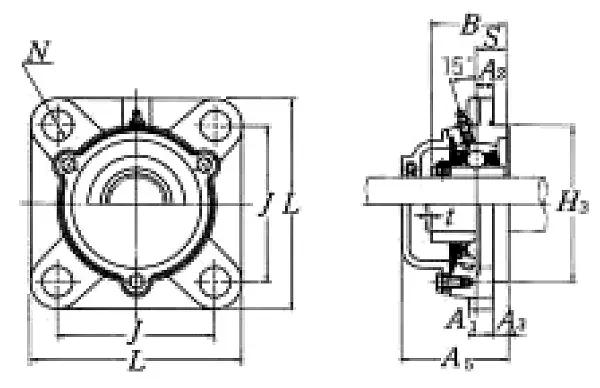

Nominal Dimensions
d
110
mm
Bore diameter
L
340
mm
Overall length
H3
300
mm
Outer diameter of Spigot Joint
J
266
mm
Distance between attachment bolts
A3
25
mm
Height of of Spigot Joint
A2
35
mm
Flange width
A1
35
mm
Flange width
A5
160
mm
Width including end cover
B,B1,B2
117
mm
Width of inner ring
t
5
mm
Clearance
S
46
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M36
Bolt size
Basic Load Ratings
Cr
205
kN
Basic dynamic load rating
C0r
179
kN
Basic static load rating
Mass
mass
45
kg
Mass approx.
