NSK C-UKF309D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
C-UKF309D1
Included products
Bearing
Housing
F309D1
Housing
Associated products
Adapter sleeve

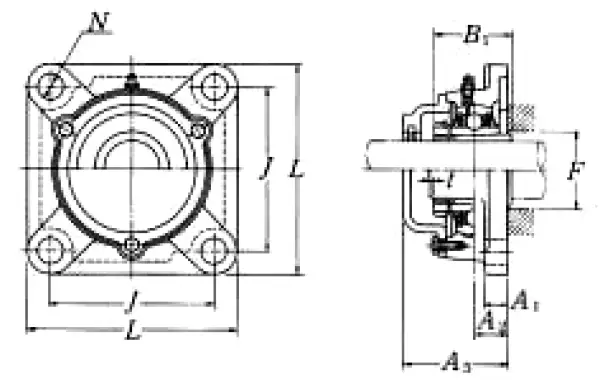

Nominal Dimensions
d
40
mm
Bore diameter
L
160
mm
Overall length
J
125
mm
Distance between attachment bolts
N
19
mm
Diameter of attachment bolt hole
A2
25
mm
Flange width
A1
18
mm
Flange width
A5
80
mm
Width including end cover
A0
54.5
mm
Overall width
B,B1,B2
50
mm
Width of inner ring
t
3
mm
Clearance
Mounting information
G
M16
Bolt size
Basic Load Ratings
Cr
53
kN
Basic dynamic load rating
C0r
32
kN
Basic static load rating
