NSK C-UKFS310D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
C-UKFS310D1
Included products
Bearing
Housing
FS310D1
Housing
Associated products
Adapter sleeve

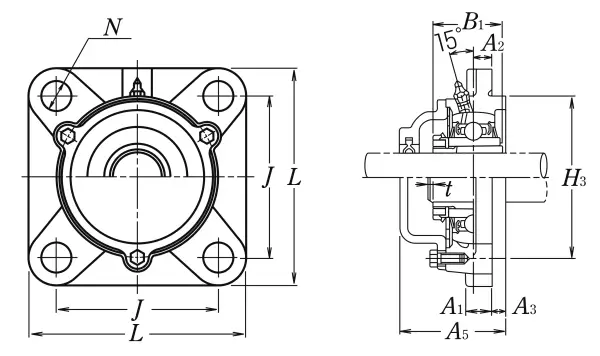

Nominal Dimensions
d
45
mm
Bore diameter
L
175
mm
Overall length
H3
140
mm
Outer diameter of Spigot Joint
J
132
mm
Distance between attachment bolts
A3
12
mm
Height of of Spigot Joint
A2
16
mm
Flange width
A1
19
mm
Flange width
A5
88
mm
Width including end cover
B,B1,B2
55
mm
Width of inner ring
t
3
mm
Clearance
Mounting information
G
M20
Bolt size
Basic Load Ratings
Cr
62
kN
Basic dynamic load rating
C0r
38.5
kN
Basic static load rating
