NSK CM-UCF211D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
CM-UCF211D1
Included products
Bearing
Housing
F211D1
Housing

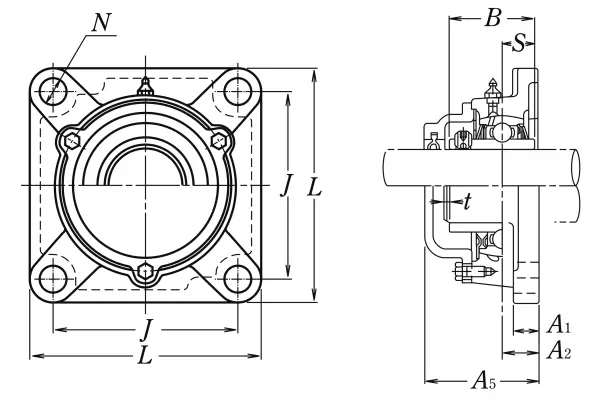

Nominal Dimensions
d
55
mm
Bore diameter
L
162
mm
Overall length
J
130
mm
Distance between attachment bolts
N
19
mm
Diameter of attachment bolt hole
A2
25
mm
Flange width
A1
18
mm
Flange width
A5
75
mm
Width including end cover
A0
58.4
mm
Overall width
B,B1,B2
55.6
mm
Width of inner ring
t
4
mm
Clearance
S
22.2
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M16
Bolt size
Basic Load Ratings
Cr
43.5
kN
Basic dynamic load rating
C0r
29.2
kN
Basic static load rating
Mass
mass
4
kg
Mass approx.
