NSK CM-UCF214D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
CM-UCF214D1
Included products
Bearing
Housing
F214D1
Housing

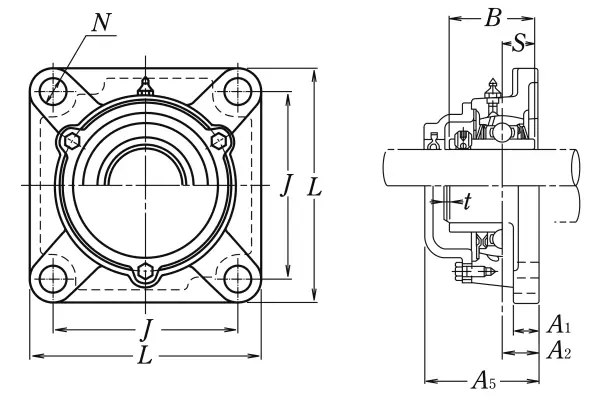

Nominal Dimensions
d
70
mm
Bore diameter
L
193
mm
Overall length
J
152
mm
Distance between attachment bolts
N
19
mm
Diameter of attachment bolt hole
A2
31
mm
Flange width
A1
22
mm
Flange width
A5
98
mm
Width including end cover
A0
75.4
mm
Overall width
B,B1,B2
74.6
mm
Width of inner ring
t
4
mm
Clearance
S
31.2
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M16
Bolt size
Basic Load Ratings
Cr
62
kN
Basic dynamic load rating
C0r
44
kN
Basic static load rating
Mass
mass
7.4
kg
Mass approx.
