NSK CM-UCF318D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
CM-UCF318D1
Included products
Bearing
Housing
F318D1
Housing

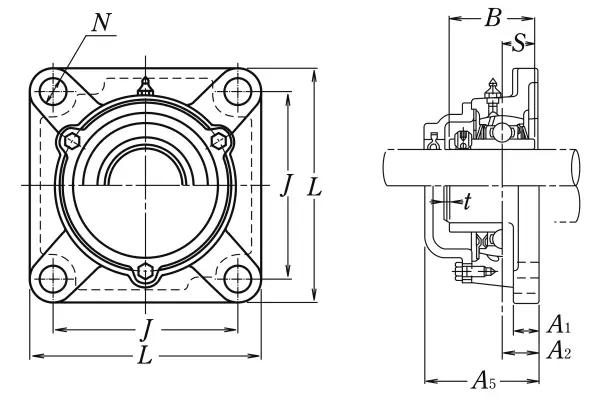

Nominal Dimensions
d
90
mm
Bore diameter
L
280
mm
Overall length
J
216
mm
Distance between attachment bolts
N
35
mm
Diameter of attachment bolt hole
A2
44
mm
Flange width
A1
30
mm
Flange width
A5
129
mm
Width including end cover
A0
100
mm
Overall width
B,B1,B2
96
mm
Width of inner ring
t
5
mm
Clearance
S
40
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M30
Bolt size
Basic Load Ratings
Cr
143
kN
Basic dynamic load rating
C0r
107
kN
Basic static load rating
Mass
mass
23
kg
Mass approx.
