NSK CM-UCFS315D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
CM-UCFS315D1
Included products
Bearing
Housing
FS315D1
Housing

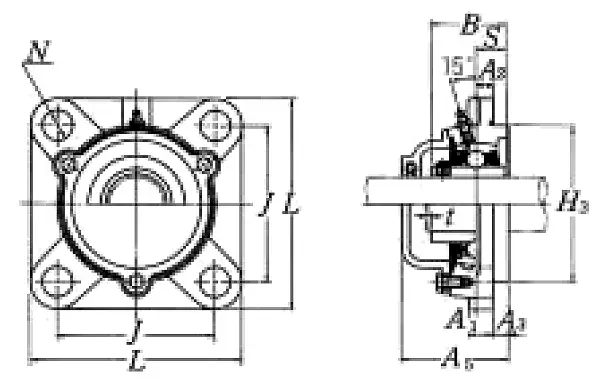

Nominal Dimensions
d
75
mm
Bore diameter
L
236
mm
Overall length
H3
200
mm
Outer diameter of Spigot Joint
J
184
mm
Distance between attachment bolts
A3
18
mm
Height of of Spigot Joint
A2
21
mm
Flange width
A1
25
mm
Flange width
A5
114
mm
Width including end cover
B,B1,B2
82
mm
Width of inner ring
t
4
mm
Clearance
S
32
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M22
Bolt size
Basic Load Ratings
Cr
113
kN
Basic dynamic load rating
C0r
77
kN
Basic static load rating
Mass
mass
14
kg
Mass approx.
