NSK CM-UCFS317D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
CM-UCFS317D1
Included products
Bearing
Housing
FS317D1
Housing

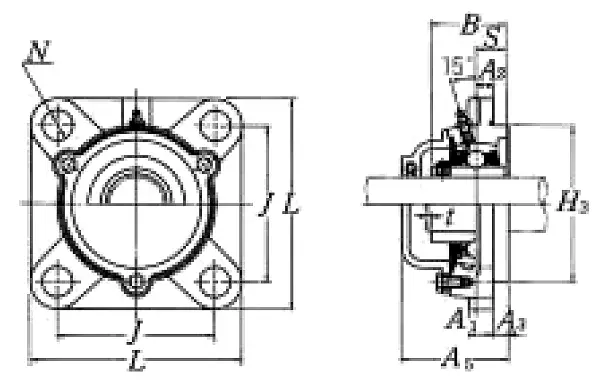

Nominal Dimensions
d
85
mm
Bore diameter
L
260
mm
Overall length
H3
220
mm
Outer diameter of Spigot Joint
J
204
mm
Distance between attachment bolts
A3
20
mm
Height of of Spigot Joint
A2
24
mm
Flange width
A1
27
mm
Flange width
A5
129
mm
Width including end cover
B,B1,B2
96
mm
Width of inner ring
t
5
mm
Clearance
S
40
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M27
Bolt size
Basic Load Ratings
Cr
133
kN
Basic dynamic load rating
C0r
97
kN
Basic static load rating
Mass
mass
20
kg
Mass approx.
