NSK CM-UCFS321D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
CM-UCFS321D1
Included products
Bearing
Housing
FS321D1
Housing

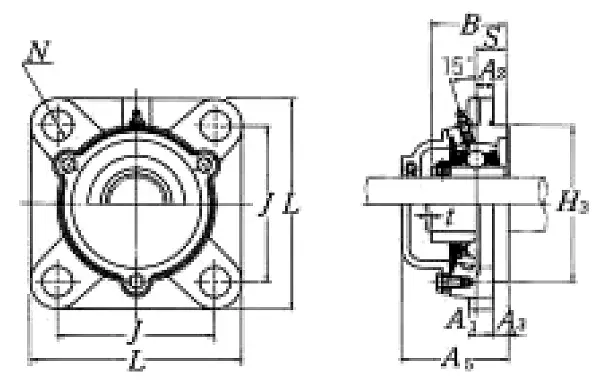

Nominal Dimensions
d
105
mm
Bore diameter
L
310
mm
Overall length
H3
260
mm
Outer diameter of Spigot Joint
J
242
mm
Distance between attachment bolts
A3
20
mm
Height of of Spigot Joint
A2
39
mm
Flange width
A1
32
mm
Flange width
A5
156
mm
Width including end cover
B,B1,B2
112
mm
Width of inner ring
t
5
mm
Clearance
S
44
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M33
Bolt size
Basic Load Ratings
Cr
184
kN
Basic dynamic load rating
C0r
153
kN
Basic static load rating
Mass
mass
33
kg
Mass approx.
