NSK CM-UCFS328D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
CM-UCFS328D1
Included products
Bearing
Housing
FS328D1
Housing

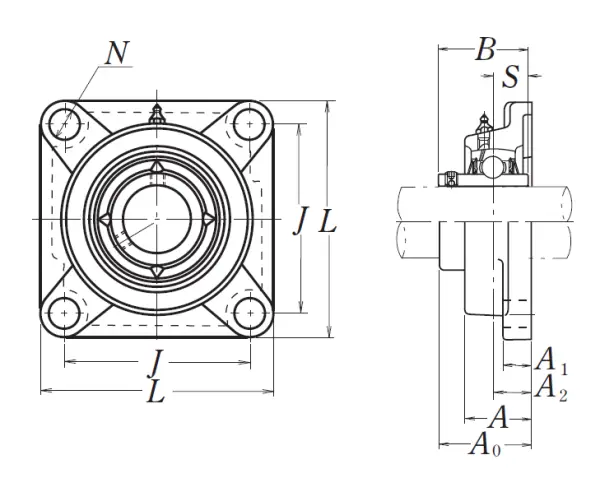

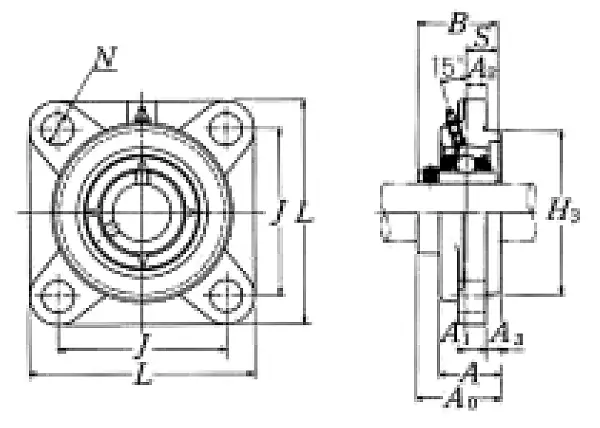

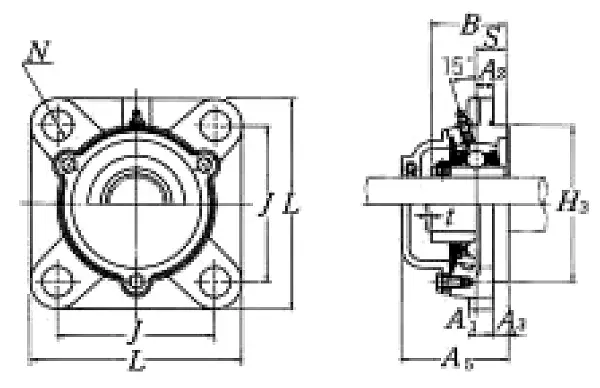

Nominal Dimensions
d
140
mm
Bore diameter
L
450
mm
Overall length
H3
400
mm
Outer diameter of Spigot Joint
J
350
mm
Distance between attachment bolts
A3
30
mm
Height of of Spigot Joint
A2
45
mm
Flange width
A1
55
mm
Flange width
A5
192
mm
Width including end cover
B,B1,B2
145
mm
Width of inner ring
t
6
mm
Clearance
S
59
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M36
Bolt size
Basic Load Ratings
Cr
253
kN
Basic dynamic load rating
C0r
246
kN
Basic static load rating
Mass
mass
109
kg
Mass approx.
