NSK CM-UKF209D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
CM-UKF209D1
Included products
Bearing
Housing
F209D1
Housing
Associated products
Adapter sleeve

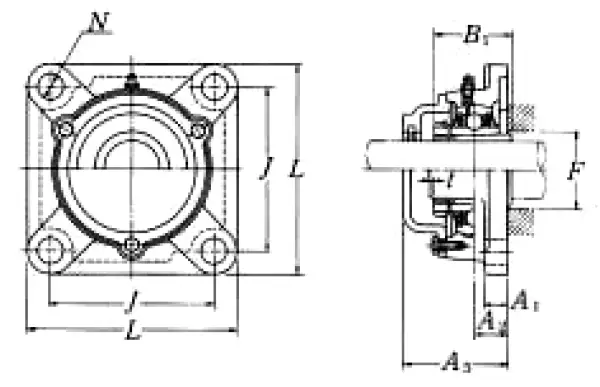

Nominal Dimensions
d
40
mm
Bore diameter
L
137
mm
Overall length
J
105
mm
Distance between attachment bolts
N
16
mm
Diameter of attachment bolt hole
A2
22
mm
Flange width
A1
16
mm
Flange width
A5
70
mm
Width including end cover
A0
48.5
mm
Overall width
B,B1,B2
50
mm
Width of inner ring
F
52
mm
Diameter of housing abutment
t
3
mm
Clearance
Mounting information
G
M14
Bolt size
Basic Load Ratings
Cr
32.5
kN
Basic dynamic load rating
C0r
20.4
kN
Basic static load rating
