NSK CM-UKFS308D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
CM-UKFS308D1
Included products
Bearing
Housing
FS308D1
Housing
Associated products
Adapter sleeve

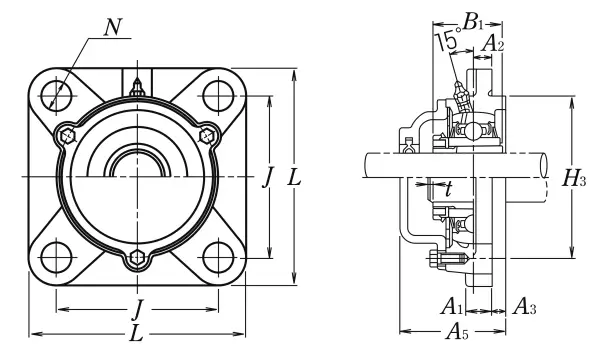

Nominal Dimensions
d
35
mm
Bore diameter
L
150
mm
Overall length
H3
115
mm
Outer diameter of Spigot Joint
J
112
mm
Distance between attachment bolts
A3
10
mm
Height of of Spigot Joint
A2
13
mm
Flange width
A1
17
mm
Flange width
A5
76
mm
Width including end cover
B,B1,B2
46
mm
Width of inner ring
t
3
mm
Clearance
Mounting information
G
M16
Bolt size
Basic Load Ratings
Cr
40.5
kN
Basic dynamic load rating
C0r
24
kN
Basic static load rating
