NSK CM-UKFS311D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
CM-UKFS311D1
Included products
Bearing
Housing
FS311D1
Housing
Associated products
Adapter sleeve

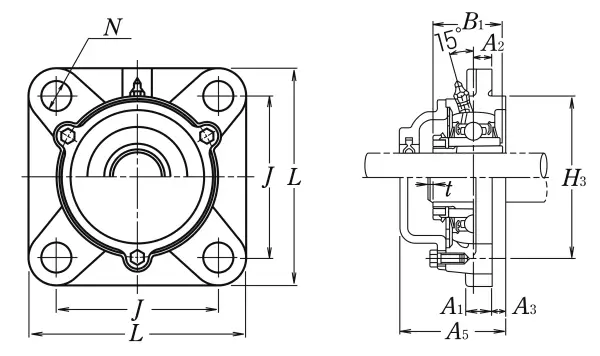

Nominal Dimensions
d
50
mm
Bore diameter
L
185
mm
Overall length
H3
150
mm
Outer diameter of Spigot Joint
J
140
mm
Distance between attachment bolts
A3
13
mm
Height of of Spigot Joint
A2
17
mm
Flange width
A1
20
mm
Flange width
A5
93
mm
Width including end cover
B,B1,B2
59
mm
Width of inner ring
t
4
mm
Clearance
Mounting information
G
M20
Bolt size
Basic Load Ratings
Cr
71.5
kN
Basic dynamic load rating
C0r
45
kN
Basic static load rating
