NSK CM-UKFS312D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
CM-UKFS312D1
Included products
Bearing
Housing
FS312D1
Housing
Associated products
Adapter sleeve

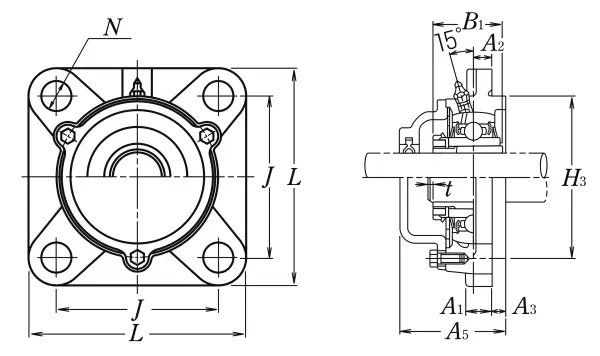

Nominal Dimensions
d
55
mm
Bore diameter
L
195
mm
Overall length
H3
160
mm
Outer diameter of Spigot Joint
J
150
mm
Distance between attachment bolts
A3
14
mm
Height of of Spigot Joint
A2
19
mm
Flange width
A1
22
mm
Flange width
A5
100
mm
Width including end cover
B,B1,B2
62
mm
Width of inner ring
t
4
mm
Clearance
Mounting information
G
M20
Bolt size
Basic Load Ratings
Cr
82
kN
Basic dynamic load rating
C0r
52
kN
Basic static load rating
