NSK CM-UKFS313D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
CM-UKFS313D1
Included products
Bearing
Housing
FS313D1
Housing
Associated products
Adapter sleeve

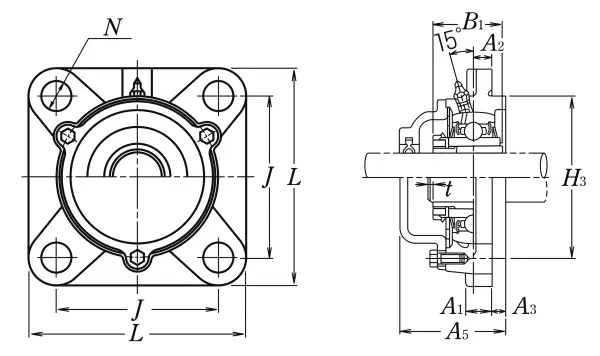

Nominal Dimensions
d
60
mm
Bore diameter
L
208
mm
Overall length
H3
175
mm
Outer diameter of Spigot Joint
J
166
mm
Distance between attachment bolts
A3
18
mm
Height of of Spigot Joint
A2
15
mm
Flange width
A1
22
mm
Flange width
A5
103
mm
Width including end cover
B,B1,B2
65
mm
Width of inner ring
t
4
mm
Clearance
Mounting information
G
M20
Bolt size
Basic Load Ratings
Cr
92.5
kN
Basic dynamic load rating
C0r
60
kN
Basic static load rating
