NSK CM-UKFS318D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
CM-UKFS318D1
Included products
Bearing
Housing
FS318D1
Housing
Associated products
Adapter sleeve

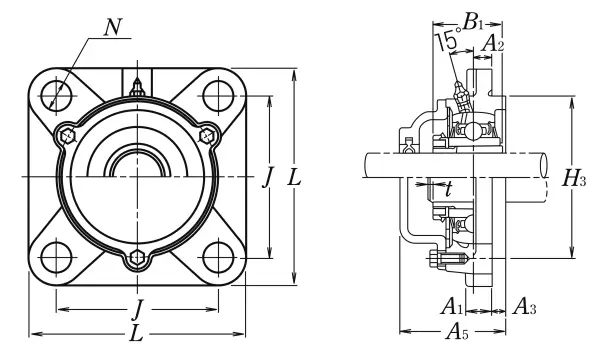

Nominal Dimensions
d
80
mm
Bore diameter
L
280
mm
Overall length
H3
240
mm
Outer diameter of Spigot Joint
J
216
mm
Distance between attachment bolts
A3
20
mm
Height of of Spigot Joint
A2
24
mm
Flange width
A1
30
mm
Flange width
A5
129
mm
Width including end cover
B,B1,B2
86
mm
Width of inner ring
t
5
mm
Clearance
Mounting information
G
M30
Bolt size
Basic Load Ratings
Cr
143
kN
Basic dynamic load rating
C0r
107
kN
Basic static load rating
