NSK CM-UKFS320D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
CM-UKFS320D1
Included products
Bearing
Housing
FS320D1
Housing
Associated products
Adapter sleeve

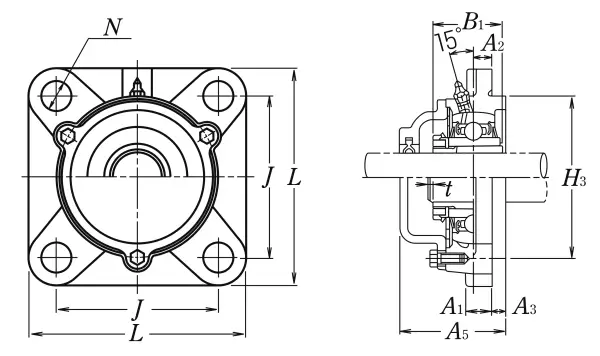

Nominal Dimensions
d
90
mm
Bore diameter
L
310
mm
Overall length
H3
260
mm
Outer diameter of Spigot Joint
J
242
mm
Distance between attachment bolts
A3
20
mm
Height of of Spigot Joint
A2
39
mm
Flange width
A1
32
mm
Flange width
A5
154
mm
Width including end cover
B,B1,B2
97
mm
Width of inner ring
t
5
mm
Clearance
Mounting information
G
M33
Bolt size
Basic Load Ratings
Cr
173
kN
Basic dynamic load rating
C0r
141
kN
Basic static load rating
