NSK CM-UKFX09D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
CM-UKFX09D1
Included products
Bearing
Housing
FX09D1
Housing
Associated products
Adapter sleeve

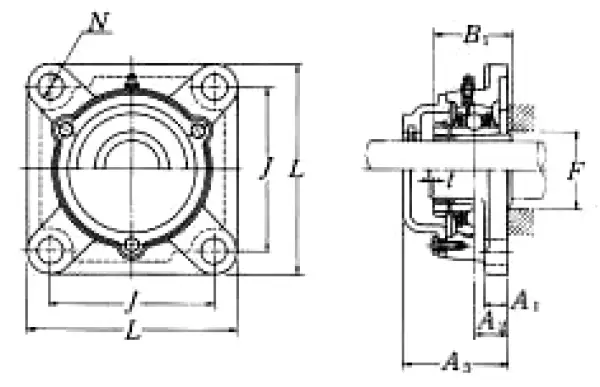

Nominal Dimensions
d
40
mm
Bore diameter
L
143
mm
Overall length
J
111
mm
Distance between attachment bolts
N
19
mm
Diameter of attachment bolt hole
A2
23
mm
Flange width
A1
14
mm
Flange width
A5
73
mm
Width including end cover
A0
50
mm
Overall width
B,B1,B2
50
mm
Width of inner ring
F
52
mm
Diameter of housing abutment
t
3
mm
Clearance
Mounting information
G
M16
Bolt size
Basic Load Ratings
Cr
35
kN
Basic dynamic load rating
C0r
23.2
kN
Basic static load rating
