NSK CM-UKFX17D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
CM-UKFX17D1
Included products
Bearing
Housing
FX17D1
Housing
Associated products
Adapter sleeve

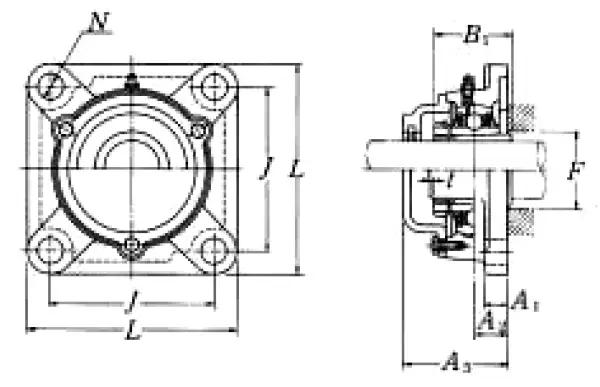

Nominal Dimensions
d
75
mm
Bore diameter
L
214
mm
Overall length
J
171
mm
Distance between attachment bolts
N
23
mm
Diameter of attachment bolt hole
A2
40
mm
Flange width
A1
24
mm
Flange width
A5
122
mm
Width including end cover
A0
81.5
mm
Overall width
B,B1,B2
82
mm
Width of inner ring
F
95
mm
Diameter of housing abutment
t
5
mm
Clearance
Mounting information
G
M20
Bolt size
Basic Load Ratings
Cr
96
kN
Basic dynamic load rating
C0r
71.5
kN
Basic static load rating
