NSK F603ZZ
Extra Small Ball Bearings and Miniature Ball Bearings Metric Series With Flamge
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Detailed data of
F603ZZ
Designations
F603ZZ

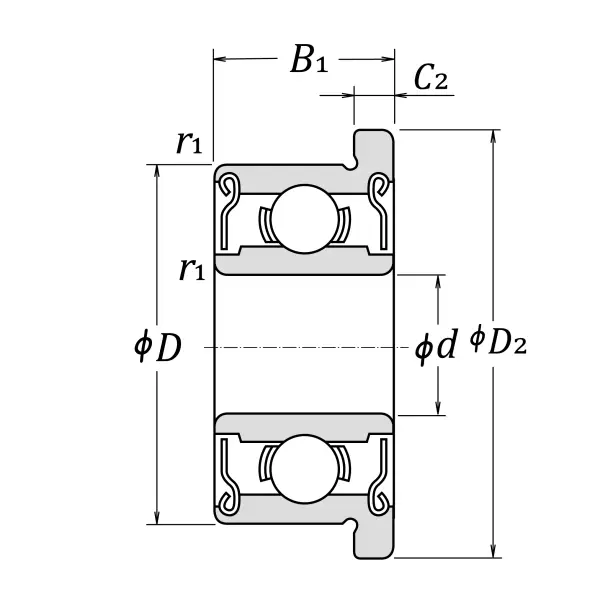

Boundary Dimensions
d
3
mm
Bore diameter
D
9
mm
Outside diameter
B
5
mm
Width
D1,2
10.5
mm
Flange diameter
C1,2
1
mm
Flange width
r1 (min.)
0.15
mm
Chamfer dimension
Basic Load Ratings
Cr
630
N
Basic dynamic load rating
C0r
187
N
Basic static load rating
Speeds
Grease
56000
min-1
Grease lubrication

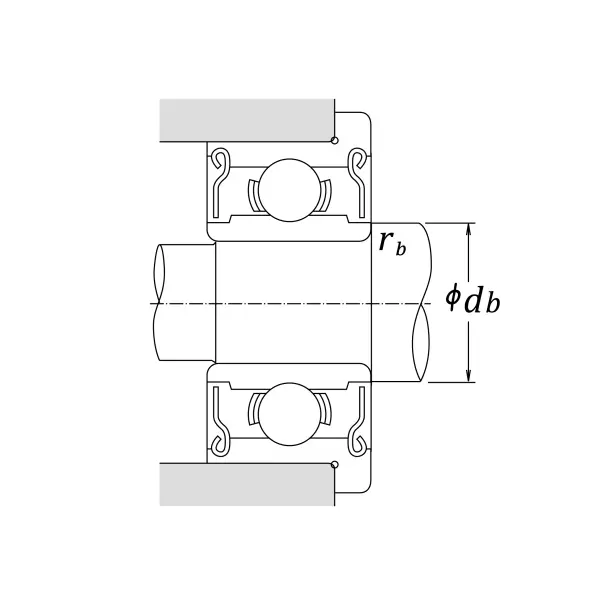

db (max.)
4.3
mm
Diameter of shaft abutment
rb (max.)
0.15
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
z
6
Number of Balls
Dw
1.588
mm
Ball Diameter
