NSK F604ZZ
Extra Small Ball Bearings and Miniature Ball Bearings Metric Series With Flamge
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Detailed data of
F604ZZ
Designations
F604ZZ

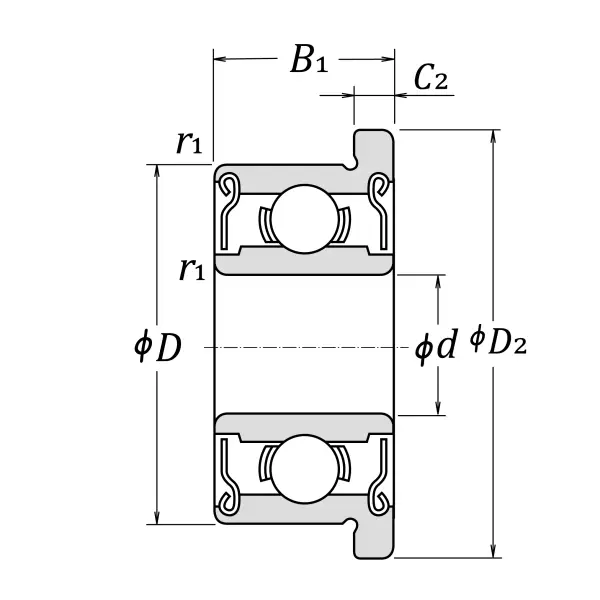

Boundary Dimensions
d
4
mm
Bore diameter
D
12
mm
Outside diameter
B
4
mm
Width
D1,2
13.5
mm
Flange diameter
C1,2
1
mm
Flange width
r1 (min.)
0.2
mm
Chamfer dimension
Basic Load Ratings
Cr
1050
N
Basic dynamic load rating
C0r
345
N
Basic static load rating
Speeds
Grease
48000
min-1
Grease lubrication

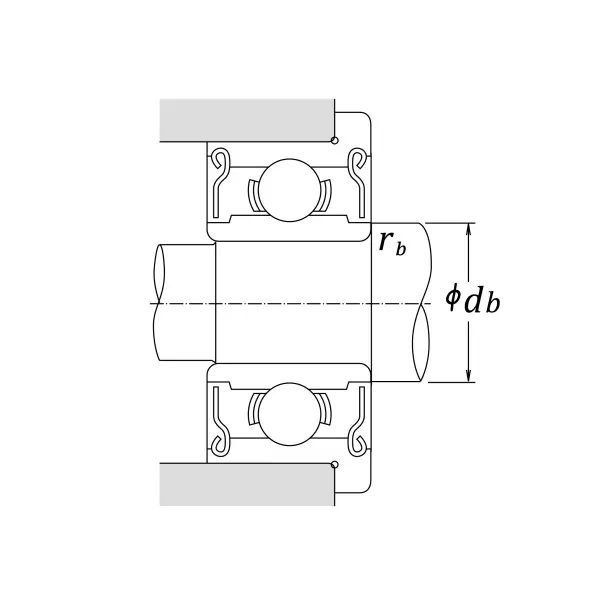

db (max.)
5.6
mm
Diameter of shaft abutment
rb (max.)
0.2
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
z
7
Number of Balls
Dw
2
mm
Ball Diameter
