NSK F607
Extra Small Ball Bearings and Miniature Ball Bearings Metric Series With Flamge
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Detailed data of
F607
Designations
F607

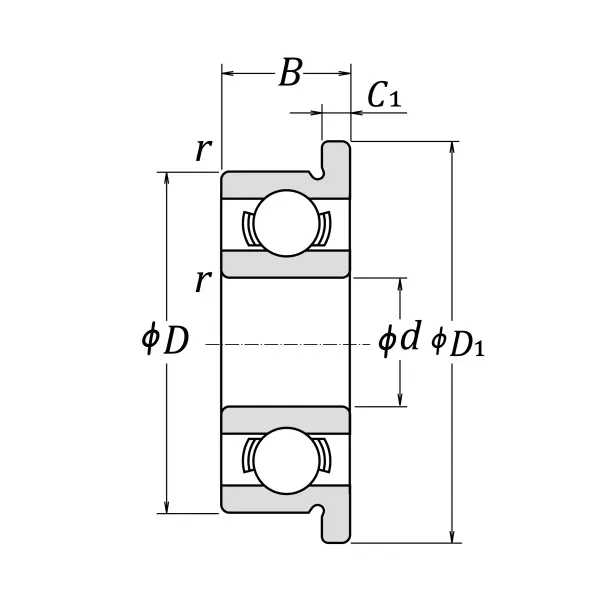

Boundary Dimensions
d
7
mm
Bore diameter
D
19
mm
Outside diameter
B
6
mm
Width
D1,2
22
mm
Flange diameter
C1,2
1.5
mm
Flange width
r (min.)
0.3
mm
Chamfer dimension
Basic Load Ratings
Cr
2570
N
Basic dynamic load rating
C0r
885
N
Basic static load rating
Speeds
Grease
36000
min-1
Grease lubrication
Oil (Oil-bath)
43000
min-1
Oil-bath lubrication

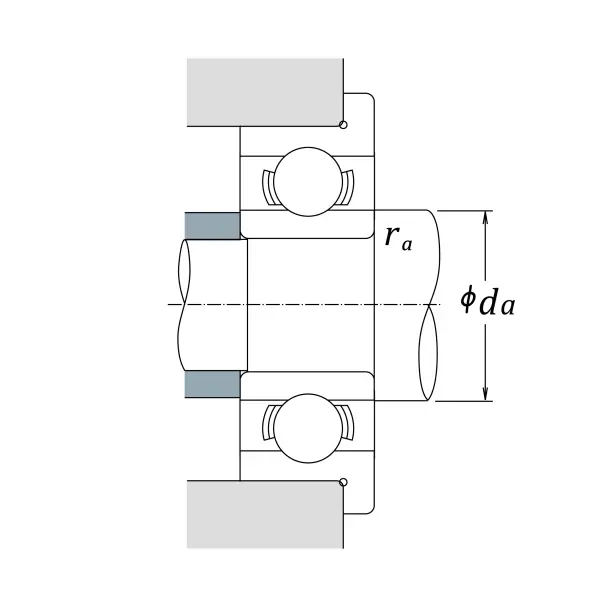

da (min.)
9
mm
Diameter of shaft abutment
ra (max.)
0.3
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
z
6
Number of Balls
Dw
3.5
mm
Ball Diameter
