NSK F624ZZ
Extra Small Ball Bearings and Miniature Ball Bearings Metric Series With Flamge
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Detailed data of
F624ZZ
Designations
F624ZZ

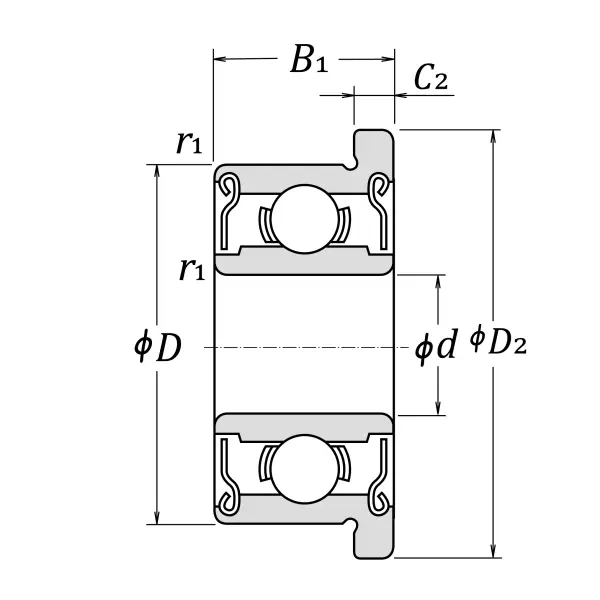

Boundary Dimensions
d
4
mm
Bore diameter
D
13
mm
Outside diameter
B
5
mm
Width
D1,2
15
mm
Flange diameter
C1,2
1
mm
Flange width
r1 (min.)
0.2
mm
Chamfer dimension
Basic Load Ratings
Cr
1430
N
Basic dynamic load rating
C0r
485
N
Basic static load rating
Speeds
Grease
40000
min-1
Grease lubrication

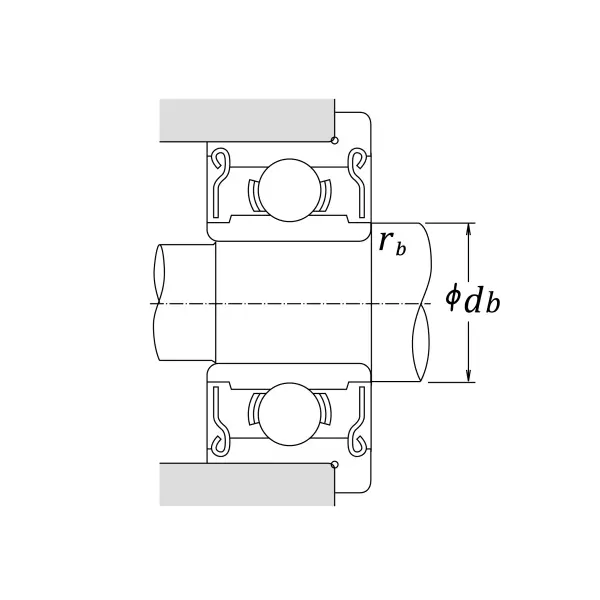

db (max.)
6
mm
Diameter of shaft abutment
rb (max.)
0.2
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
z
7
Number of Balls
Dw
2.381
mm
Ball Diameter
