NSK F625
Extra Small Ball Bearings and Miniature Ball Bearings Metric Series With Flamge
(BRAND)：NSK
(Availability)：In Stock
Detailed data of
F625
Designations
F625

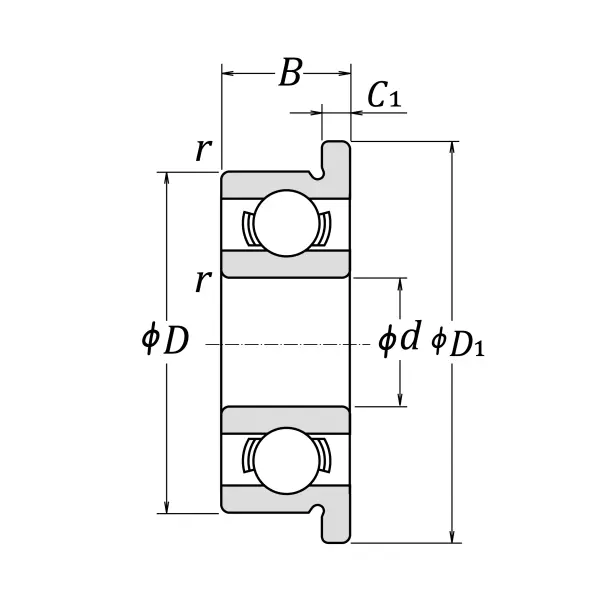

Boundary Dimensions
d
5
mm
Bore diameter
D
16
mm
Outside diameter
B
5
mm
Width
D1,2
18
mm
Flange diameter
C1,2
1
mm
Flange width
r (min.)
0.3
mm
Chamfer dimension
Basic Load Ratings
Cr
1910
N
Basic dynamic load rating
C0r
670
N
Basic static load rating
Speeds
Grease
36000
min-1
Grease lubrication
Oil (Oil-bath)
43000
min-1
Oil-bath lubrication

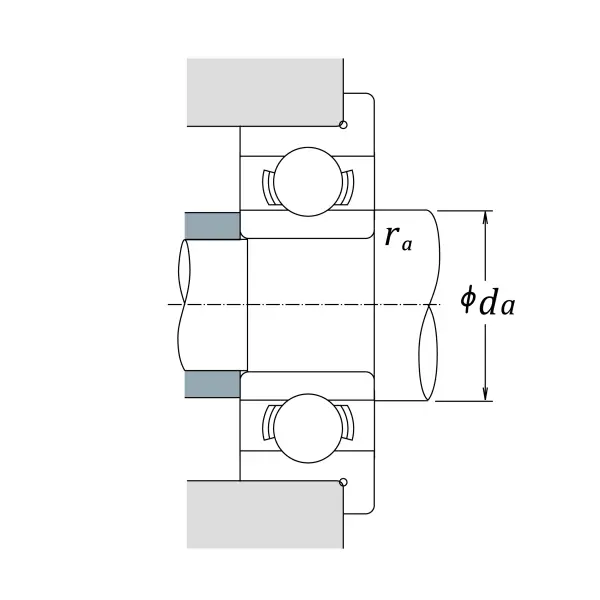

da (min.)
7
mm
Diameter of shaft abutment
ra (max.)
0.3
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
z
7
Number of Balls
Dw
2.778
mm
Ball Diameter
