NSK F681XZZ
Extra Small Ball Bearings and Miniature Ball Bearings Metric Series With Flamge
(BRAND)：NSK
(Availability)：In Stock
Detailed data of
F681XZZ
Designations
F681XZZ

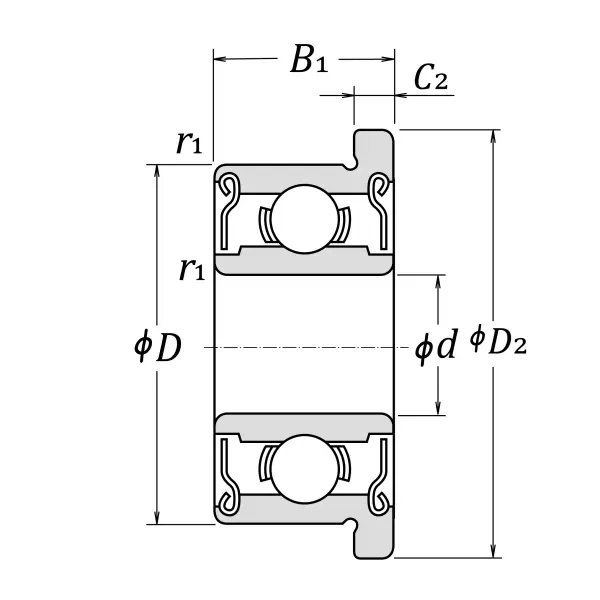

Boundary Dimensions
d
1.5
mm
Bore diameter
D
4
mm
Outside diameter
B
2
mm
Width
D1,2
5
mm
Flange diameter
C1,2
0.6
mm
Flange width
r1 (min.)
0.05
mm
Chamfer dimension
Basic Load Ratings
Cr
124
N
Basic dynamic load rating
C0r
33
N
Basic static load rating
Speeds
Grease
100000
min-1
Grease lubrication

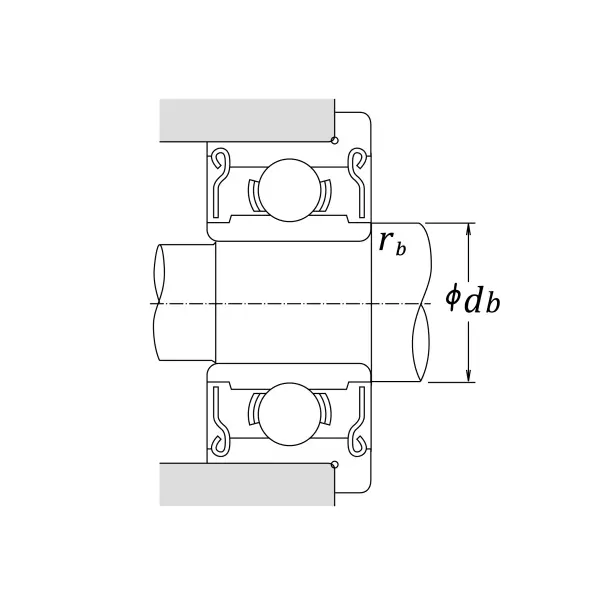

db (max.)
2.1
mm
Diameter of shaft abutment
rb (max.)
0.05
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
z
7
Number of Balls
Dw
0.6
mm
Ball Diameter
