NSK F682
Extra Small Ball Bearings and Miniature Ball Bearings Metric Series With Flamge
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Detailed data of
F682
Designations
F682

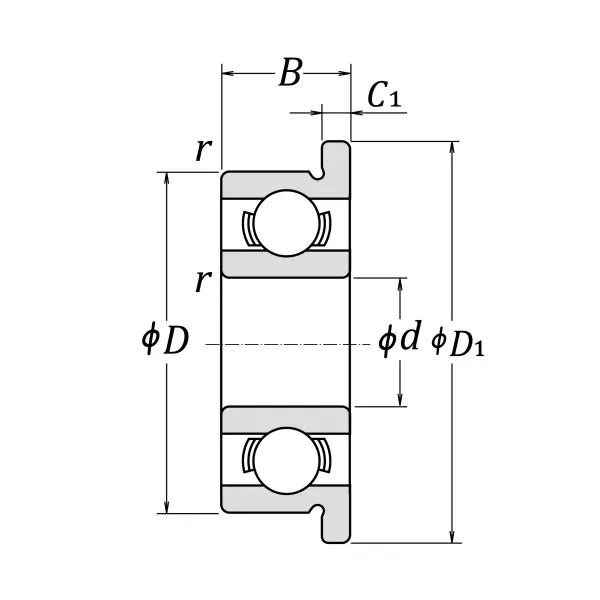

Boundary Dimensions
d
2
mm
Bore diameter
D
5
mm
Outside diameter
B
1.5
mm
Width
D1,2
6.1
mm
Flange diameter
C1,2
0.5
mm
Flange width
r (min.)
0.08
mm
Chamfer dimension
Basic Load Ratings
Cr
186
N
Basic dynamic load rating
C0r
50
N
Basic static load rating
Speeds
Grease
85000
min-1
Grease lubrication
Oil (Oil-bath)
100000
min-1
Oil-bath lubrication
da (min.)
2.6
mm
Diameter of shaft abutment
ra (max.)
0.08
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
z
6
Number of Balls
Dw
0.8
mm
Ball Diameter
