NSK F682XZZ
Extra Small Ball Bearings and Miniature Ball Bearings Metric Series With Flamge
(BRAND)：NSK
(Availability)：In Stock
Detailed data of
F682XZZ
Designations
F682XZZ

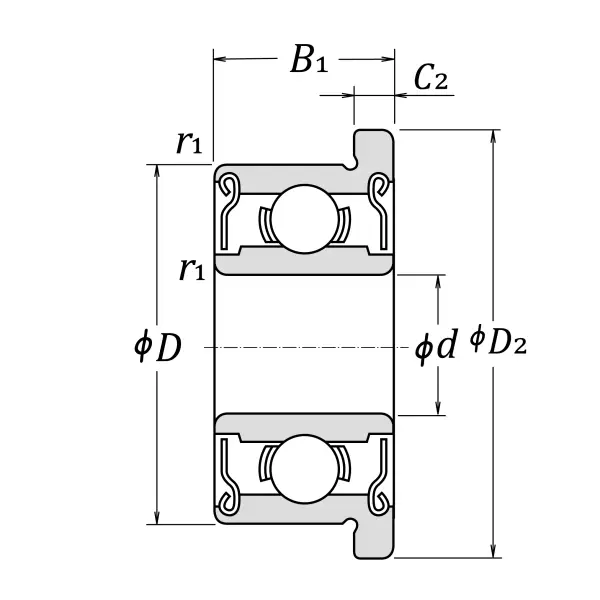

Boundary Dimensions
d
2.5
mm
Bore diameter
D
6
mm
Outside diameter
B
2.6
mm
Width
D1,2
7.1
mm
Flange diameter
C1,2
0.8
mm
Flange width
r1 (min.)
0.08
mm
Chamfer dimension
Basic Load Ratings
Cr
230
N
Basic dynamic load rating
C0r
74
N
Basic static load rating
Speeds
Grease
71000
min-1
Grease lubrication

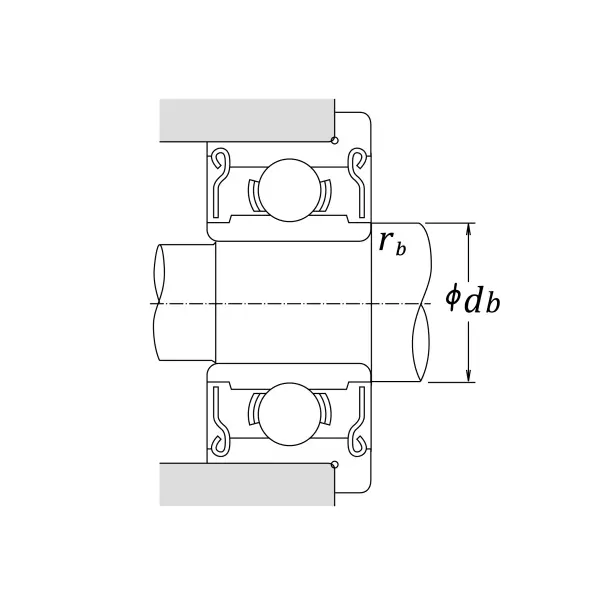

db (max.)
3.7
mm
Diameter of shaft abutment
rb (max.)
0.08
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
z
8
Number of Balls
Dw
0.8
mm
Ball Diameter
