NSK F691XZZ
Extra Small Ball Bearings and Miniature Ball Bearings Metric Series With Flamge
(BRAND)：NSK
(Availability)：In Stock
Detailed data of
F691XZZ
Designations
F691XZZ

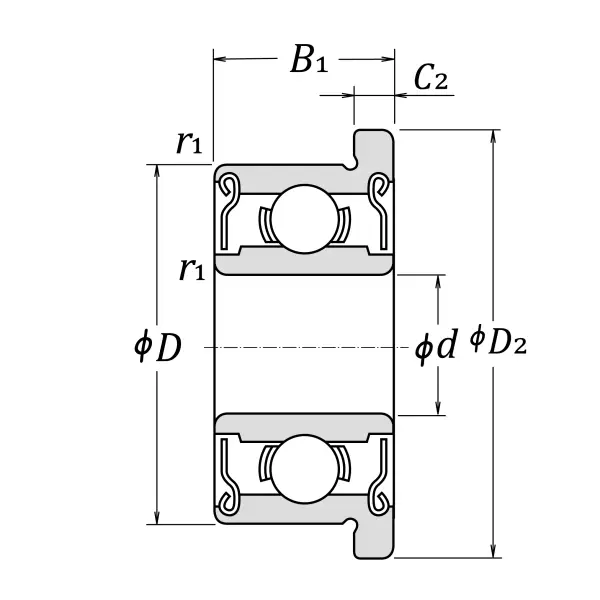

Boundary Dimensions
d
1.5
mm
Bore diameter
D
5
mm
Outside diameter
B
2.6
mm
Width
D1,2
6.5
mm
Flange diameter
C1,2
0.8
mm
Flange width
r1 (min.)
0.15
mm
Chamfer dimension
Basic Load Ratings
Cr
262
N
Basic dynamic load rating
C0r
69
N
Basic static load rating
Speeds
Grease
85000
min-1
Grease lubrication

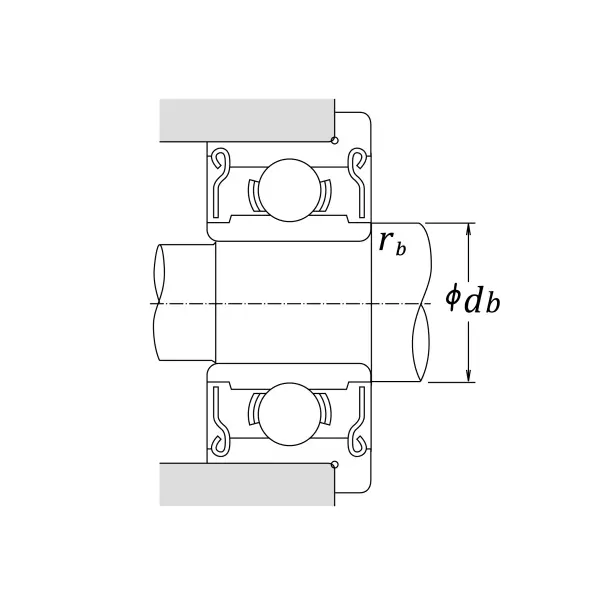

db (max.)
2.5
mm
Diameter of shaft abutment
rb (max.)
0.15
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
z
6
Number of Balls
Dw
1
mm
Ball Diameter
