NSK F693ZZ
Extra Small Ball Bearings and Miniature Ball Bearings Metric Series With Flamge
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Detailed data of
F693ZZ
Designations
F693ZZ

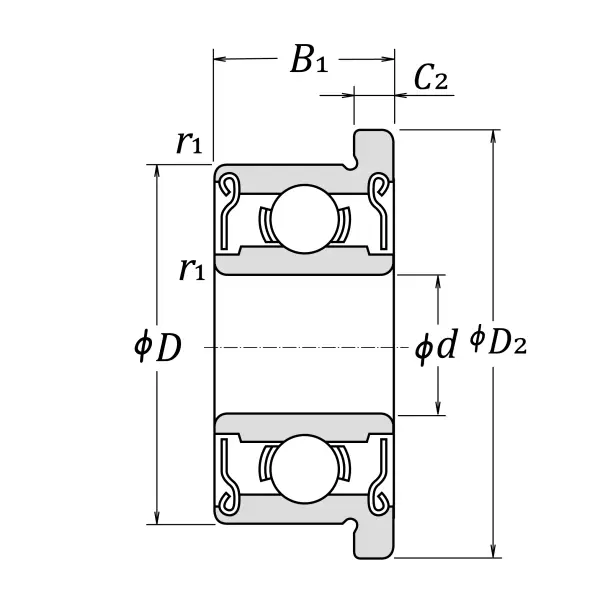

Boundary Dimensions
d
3
mm
Bore diameter
D
8
mm
Outside diameter
B
4
mm
Width
D1,2
9.5
mm
Flange diameter
C1,2
0.9
mm
Flange width
r1 (min.)
0.15
mm
Chamfer dimension
Basic Load Ratings
Cr
615
N
Basic dynamic load rating
C0r
179
N
Basic static load rating
Speeds
Grease
60000
min-1
Grease lubrication

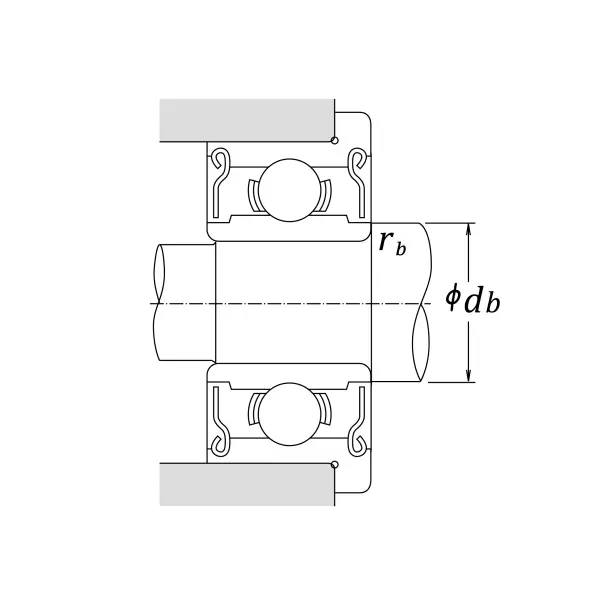

db (max.)
4.3
mm
Diameter of shaft abutment
rb (max.)
0.15
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
z
6
Number of Balls
Dw
1.588
mm
Ball Diameter
