NSK MF128ZZ1
Extra Small Ball Bearings and Miniature Ball Bearings Metric Series With Flamge
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Detailed data of
MF128ZZ1
Designations
MF128ZZ1
Boundary Dimensions
d
8
mm
Bore diameter
D
12
mm
Outside diameter
B
3.5
mm
Width
D1,2
13.6
mm
Flange diameter
C1,2
0.8
mm
Flange width
r1 (min.)
0.1
mm
Chamfer dimension
Basic Load Ratings
Cr
600
N
Basic dynamic load rating
C0r
274
N
Basic static load rating
Speeds
Grease
40000
min-1
Grease lubrication

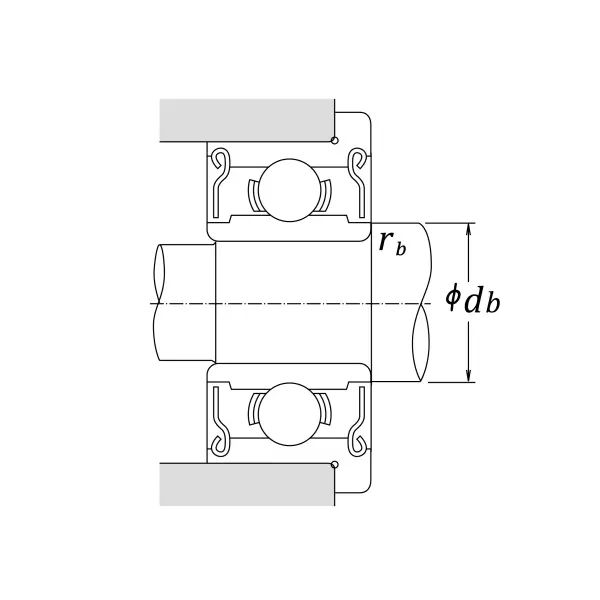

db (max.)
9
mm
Diameter of shaft abutment
rb (max.)
0.1
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
z
12
Number of Balls
Dw
1.2
mm
Ball Diameter
