NSK MF74ZZ
Extra Small Ball Bearings and Miniature Ball Bearings Metric Series With Flamge
(BRAND)：NSK
(Availability)：In Stock
Detailed data of
MF74ZZ
Designations
MF74ZZ

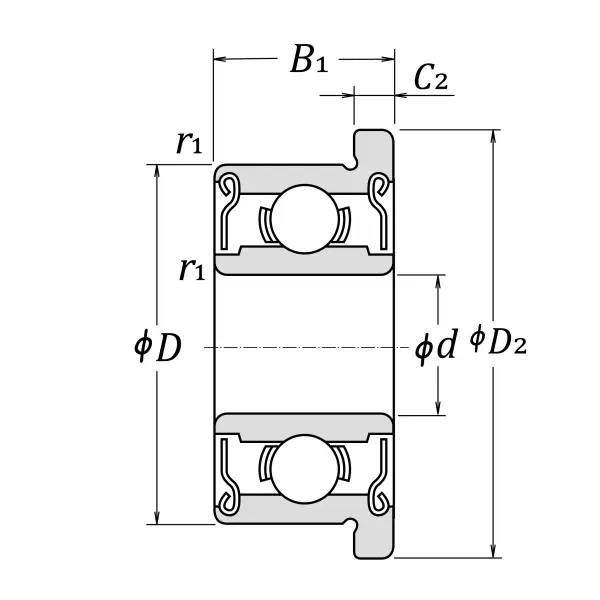

Boundary Dimensions
d
4
mm
Bore diameter
D
7
mm
Outside diameter
B
2.5
mm
Width
D1,2
8.2
mm
Flange diameter
C1,2
0.6
mm
Flange width
r1 (min.)
0.1
mm
Chamfer dimension
Basic Load Ratings
Cr
280
N
Basic dynamic load rating
C0r
107
N
Basic static load rating
Speeds
Grease
60000
min-1
Grease lubrication

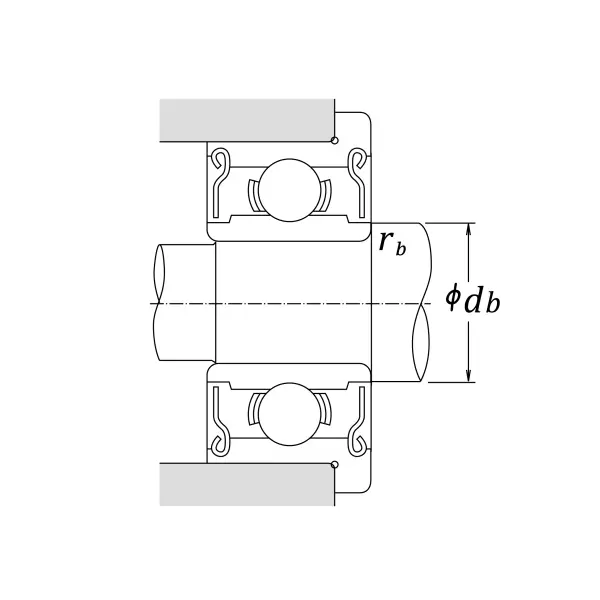

db (max.)
4.8
mm
Diameter of shaft abutment
rb (max.)
0.1
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
z
11
Number of Balls
Dw
0.8
mm
Ball Diameter
