NSK MF84
Extra Small Ball Bearings and Miniature Ball Bearings Metric Series With Flamge
(BRAND)：NSK
(Availability)：In Stock
Detailed data of
MF84
Designations
MF84

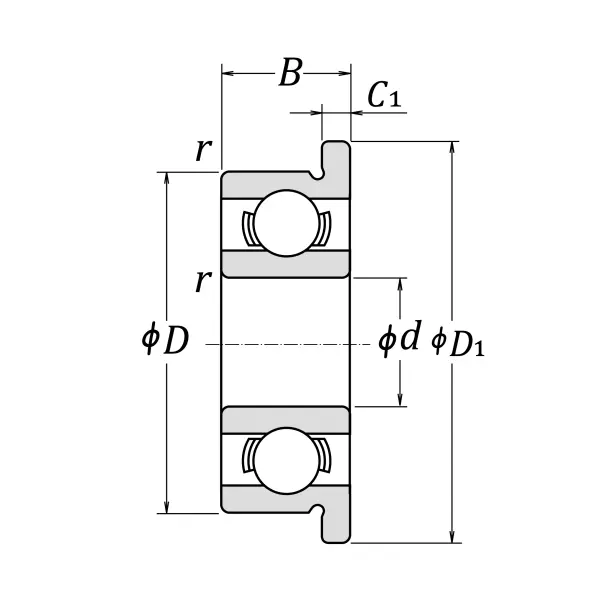

Boundary Dimensions
d
4
mm
Bore diameter
D
8
mm
Outside diameter
B
2
mm
Width
D1,2
9.2
mm
Flange diameter
C1,2
0.6
mm
Flange width
r (min.)
0.15
mm
Chamfer dimension
Basic Load Ratings
Cr
435
N
Basic dynamic load rating
C0r
139
N
Basic static load rating
Speeds
Grease
56000
min-1
Grease lubrication
Oil (Oil-bath)
67000
min-1
Oil-bath lubrication
da (min.)
5.2
mm
Diameter of shaft abutment
ra (max.)
0.15
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
z
7
Number of Balls
Dw
1.2
mm
Ball Diameter
