NSK MR104BZZ
Extra Small Ball Bearings and Miniature Ball Bearings Metric Series
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
MR104BZZ

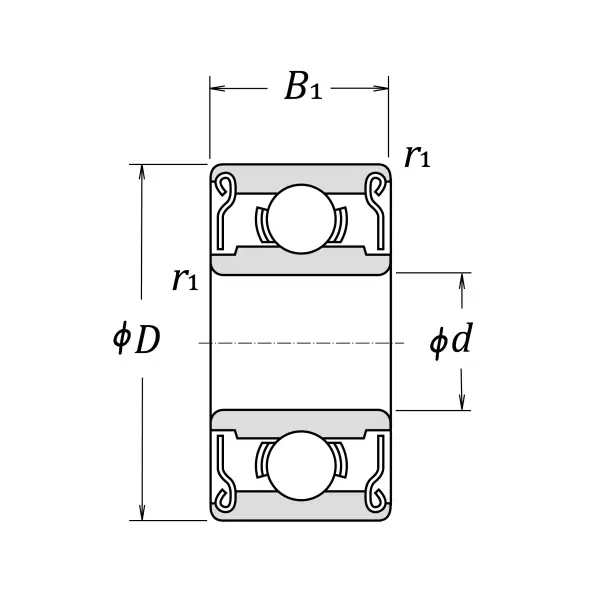

Boundary Dimensions
d
4
mm
Bore diameter
D
10
mm
Outside diameter
B
4
mm
Width
r1 (min.)
0.15
mm
Chamfer dimension
Basic Load Ratings
Cr
780
N
Basic dynamic load rating
C0r
270
N
Basic static load rating
Speeds
Grease
50000
min-1
Grease lubrication

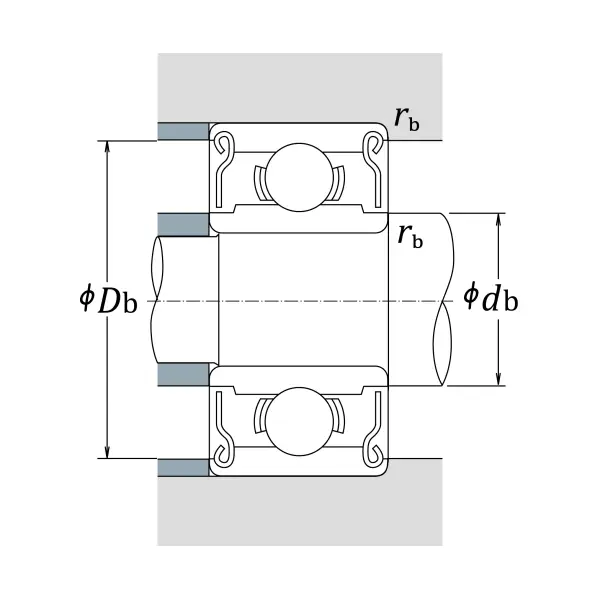

db (max.)
5.9
mm
Diameter of shaft abutment
Db (max.)
8.8
mm
Diameter of housing abutment
rb (max.)
0.15
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
z
8
Number of Balls
Dw
1.588
mm
Ball Diameter
