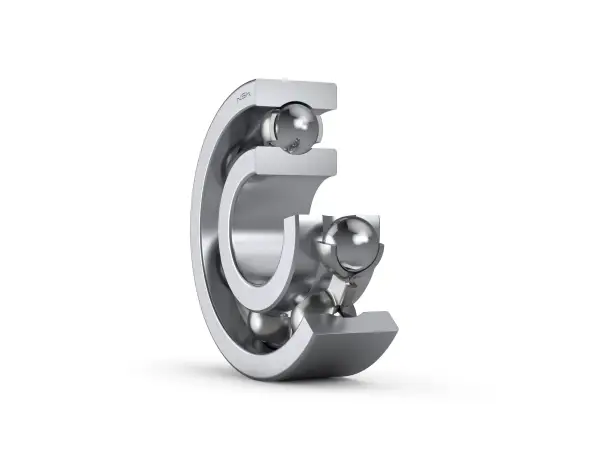

NSK MR105
Extra Small Ball Bearings and Miniature Ball Bearings Metric Series
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
MR105

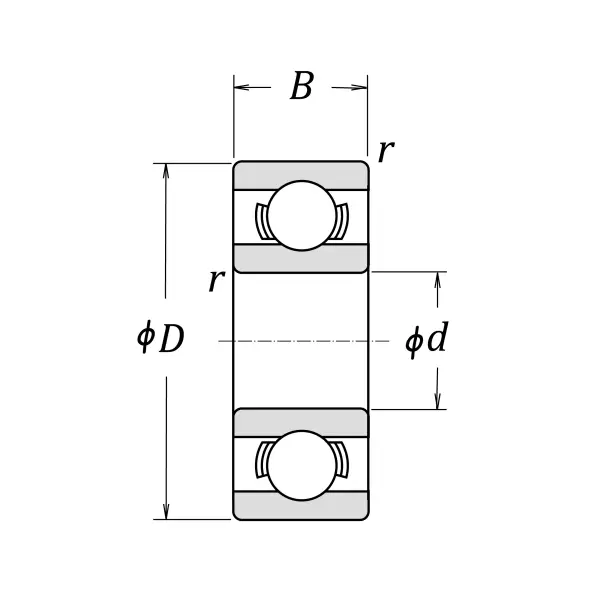

Boundary Dimensions
d
5
mm
Bore diameter
D
10
mm
Outside diameter
B
3
mm
Width
r (min.)
0.15
mm
Chamfer dimension
Basic Load Ratings
Cr
475
N
Basic dynamic load rating
C0r
168
N
Basic static load rating
Speeds
Grease
50000
min-1
Grease lubrication
Oil (Oil-bath)
60000
min-1
Oil-bath lubrication
da (min.)
6.2
mm
Diameter of shaft abutment
Da (max.)
8.8
mm
Diameter of housing abutment
ra (max.)
0.15
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
z
8
Number of Balls
Dw
1.2
mm
Ball Diameter
