NSK MR105ZZ
Extra Small Ball Bearings and Miniature Ball Bearings Metric Series
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
MR105ZZ

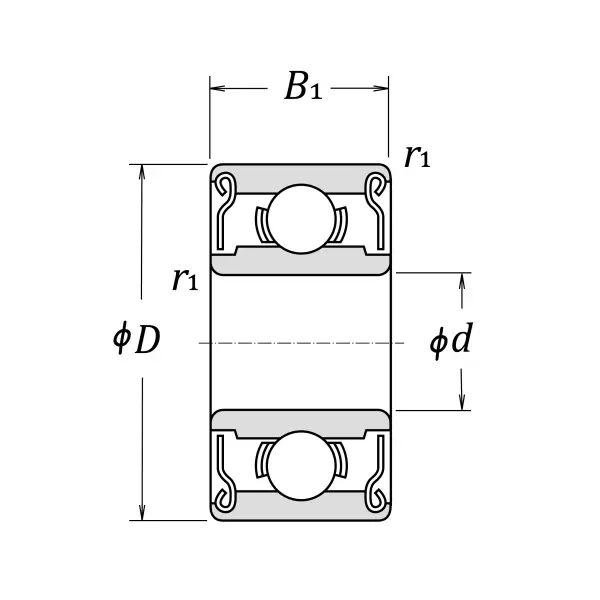

Boundary Dimensions
d
5
mm
Bore diameter
D
10
mm
Outside diameter
B
4
mm
Width
r1 (min.)
0.15
mm
Chamfer dimension
Basic Load Ratings
Cr
475
N
Basic dynamic load rating
C0r
168
N
Basic static load rating
Speeds
Grease
50000
min-1
Grease lubrication
db (max.)
6
mm
Diameter of shaft abutment
Db (max.)
8.4
mm
Diameter of housing abutment
rb (max.)
0.15
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
z
8
Number of Balls
Dw
1.2
mm
Ball Diameter
