NSK UCF202D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UCF202D1
Included products
Bearing
Housing
F204D1
Housing

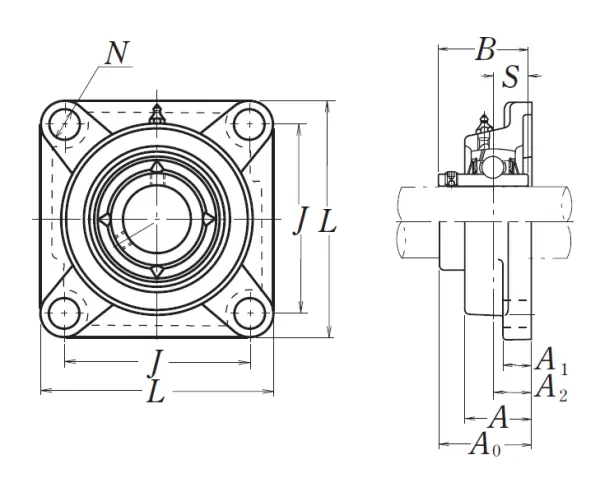

Nominal Dimensions
d
15
mm
Bore diameter
L
86
mm
Overall length
J
64
mm
Distance between attachment bolts
N
12
mm
Diameter of attachment bolt hole
A2
15
mm
Flange width
A1
11
mm
Flange width
A
25.5
mm
Base width
A0
33.3
mm
Overall width
B,B1,B2
31
mm
Width of inner ring
S
12.7
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M10
Bolt size
Basic Load Ratings
Cr
12.8
kN
Basic dynamic load rating
C0r
6.65
kN
Basic static load rating
Mass
mass
0.6
kg
Mass approx.
