NSK UCF212D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UCF212D1
Included products
Bearing
Housing
F212D1
Housing

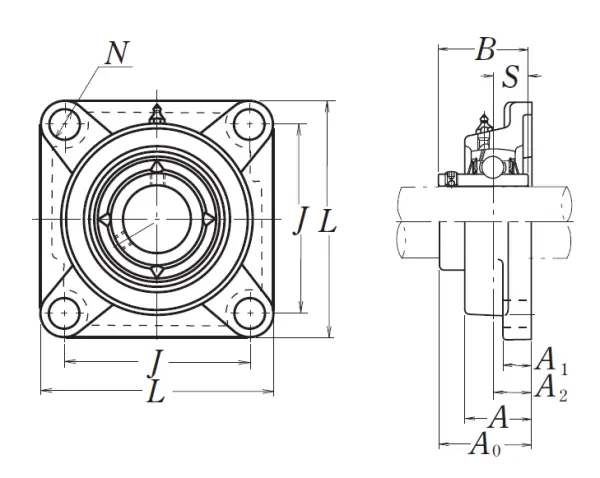

Nominal Dimensions
d
60
mm
Bore diameter
L
175
mm
Overall length
J
143
mm
Distance between attachment bolts
N
19
mm
Diameter of attachment bolt hole
A2
29
mm
Flange width
A1
18
mm
Flange width
A
48
mm
Base width
A0
68.7
mm
Overall width
B,B1,B2
65.1
mm
Width of inner ring
S
25.4
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M16
Bolt size
Basic Load Ratings
Cr
52.5
kN
Basic dynamic load rating
C0r
36
kN
Basic static load rating
Mass
mass
3.9
kg
Mass approx.
