NSK UCF214D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UCF214D1
Included products
Bearing
Housing
F214D1
Housing

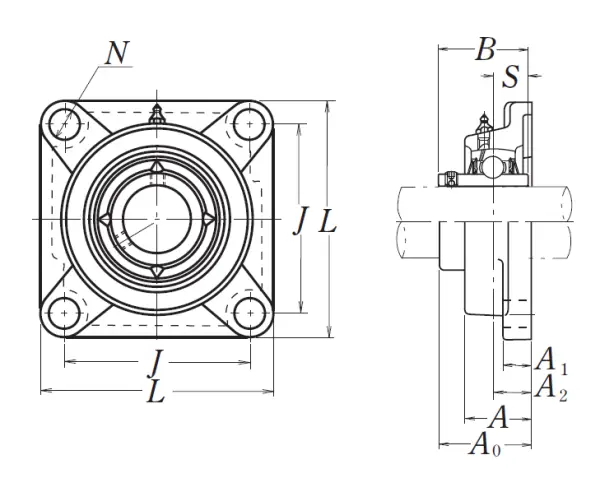

Nominal Dimensions
d
70
mm
Bore diameter
L
193
mm
Overall length
J
152
mm
Distance between attachment bolts
N
19
mm
Diameter of attachment bolt hole
A2
31
mm
Flange width
A1
22
mm
Flange width
A
54
mm
Base width
A0
75.4
mm
Overall width
B,B1,B2
74.6
mm
Width of inner ring
S
31.2
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M16
Bolt size
Basic Load Ratings
Cr
62
kN
Basic dynamic load rating
C0r
44
kN
Basic static load rating
Mass
mass
6.3
kg
Mass approx.
