NSK UCF216D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UCF216D1
Included products
Bearing
Housing
F216D1
Housing

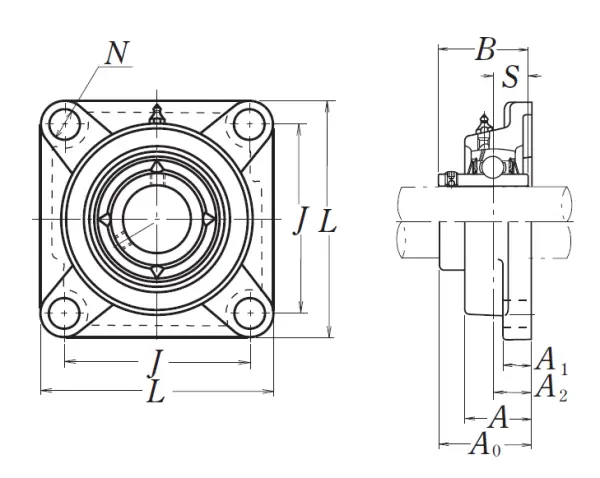

Nominal Dimensions
d
80
mm
Bore diameter
L
208
mm
Overall length
J
165
mm
Distance between attachment bolts
N
23
mm
Diameter of attachment bolt hole
A2
34
mm
Flange width
A1
22
mm
Flange width
A
58
mm
Base width
A0
83.3
mm
Overall width
B,B1,B2
82.6
mm
Width of inner ring
S
33.3
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M20
Bolt size
Basic Load Ratings
Cr
72.5
kN
Basic dynamic load rating
C0r
53
kN
Basic static load rating
Mass
mass
7.9
kg
Mass approx.
