NSK UCF306D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UCF306D1
Included products
Bearing
Housing
F306D1
Housing

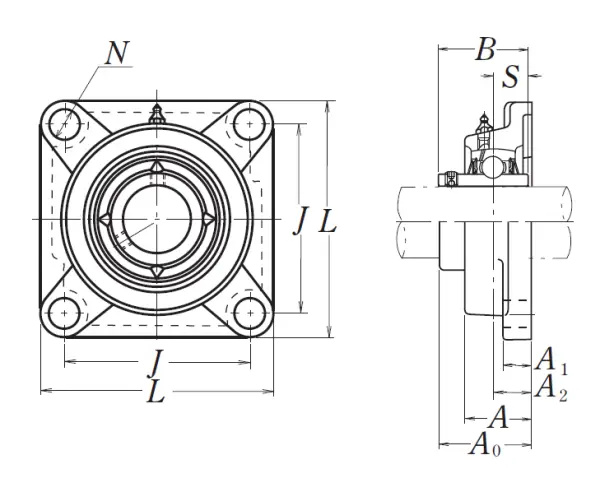

Nominal Dimensions
d
30
mm
Bore diameter
L
125
mm
Overall length
J
95
mm
Distance between attachment bolts
N
16
mm
Diameter of attachment bolt hole
A2
18
mm
Flange width
A1
15
mm
Flange width
A
32
mm
Base width
A0
44
mm
Overall width
B,B1,B2
43
mm
Width of inner ring
S
17
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M14
Bolt size
Basic Load Ratings
Cr
26.7
kN
Basic dynamic load rating
C0r
15
kN
Basic static load rating
Mass
mass
1.6
kg
Mass approx.
