NSK UCF309D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UCF309D1
Included products
Bearing
Housing
F309D1
Housing

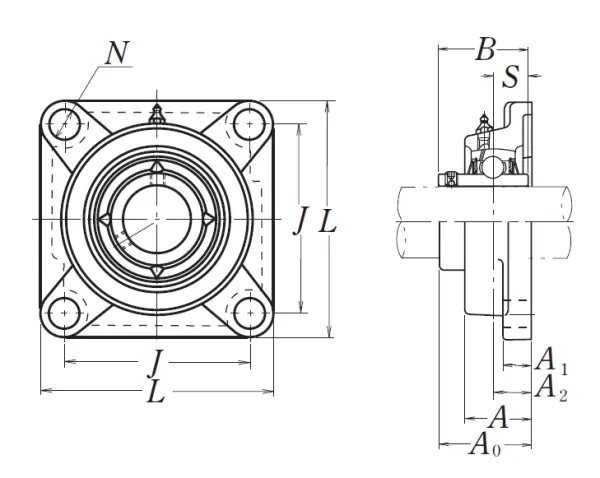

Nominal Dimensions
d
45
mm
Bore diameter
L
160
mm
Overall length
J
125
mm
Distance between attachment bolts
N
19
mm
Diameter of attachment bolt hole
A2
25
mm
Flange width
A1
18
mm
Flange width
A
44
mm
Base width
A0
60
mm
Overall width
B,B1,B2
57
mm
Width of inner ring
S
22
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M16
Bolt size
Basic Load Ratings
Cr
53
kN
Basic dynamic load rating
C0r
32
kN
Basic static load rating
Mass
mass
3.4
kg
Mass approx.
