NSK UCF310D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UCF310D1
Included products
Bearing
Housing
F310D1
Housing

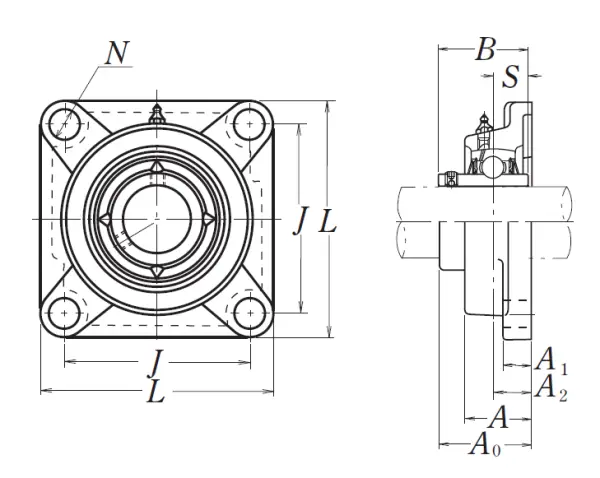

Nominal Dimensions
d
50
mm
Bore diameter
L
175
mm
Overall length
J
132
mm
Distance between attachment bolts
N
23
mm
Diameter of attachment bolt hole
A2
28
mm
Flange width
A1
19
mm
Flange width
A
48
mm
Base width
A0
67
mm
Overall width
B,B1,B2
61
mm
Width of inner ring
S
22
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M20
Bolt size
Basic Load Ratings
Cr
62
kN
Basic dynamic load rating
C0r
38.5
kN
Basic static load rating
Mass
mass
4.5
kg
Mass approx.
