NSK UCF313D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UCF313D1
Included products
Bearing
Housing
F313D1
Housing

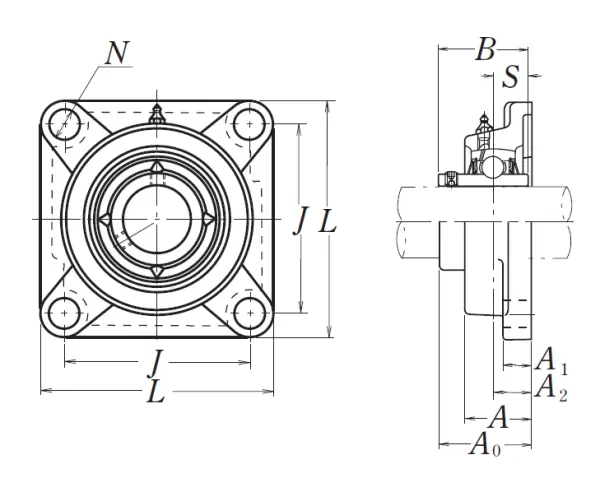

Nominal Dimensions
d
65
mm
Bore diameter
L
208
mm
Overall length
J
166
mm
Distance between attachment bolts
N
23
mm
Diameter of attachment bolt hole
A2
33
mm
Flange width
A1
22
mm
Flange width
A
58
mm
Base width
A0
78
mm
Overall width
B,B1,B2
75
mm
Width of inner ring
S
30
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M20
Bolt size
Basic Load Ratings
Cr
92.5
kN
Basic dynamic load rating
C0r
60
kN
Basic static load rating
Mass
mass
8
kg
Mass approx.
