NSK UCF316D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UCF316D1
Included products
Bearing
Housing
F316D1
Housing

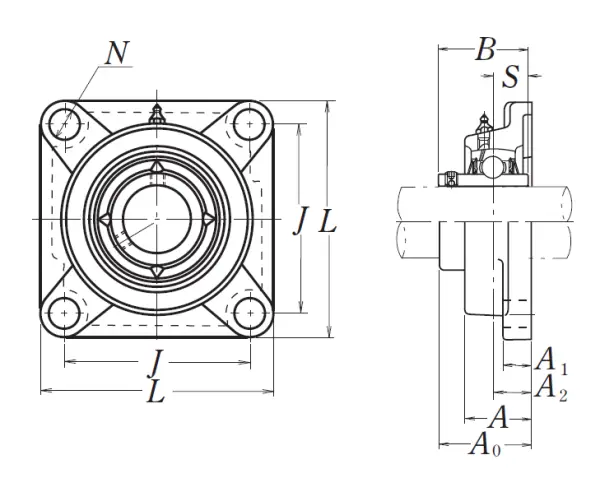

Nominal Dimensions
d
80
mm
Bore diameter
L
250
mm
Overall length
J
196
mm
Distance between attachment bolts
N
31
mm
Diameter of attachment bolt hole
A2
38
mm
Flange width
A1
27
mm
Flange width
A
68
mm
Base width
A0
90
mm
Overall width
B,B1,B2
86
mm
Width of inner ring
S
34
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M27
Bolt size
Basic Load Ratings
Cr
123
kN
Basic dynamic load rating
C0r
86.5
kN
Basic static load rating
Mass
mass
14
kg
Mass approx.
