NSK UCF321D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UCF321D1
Included products
Bearing
Housing
F321D1
Housing

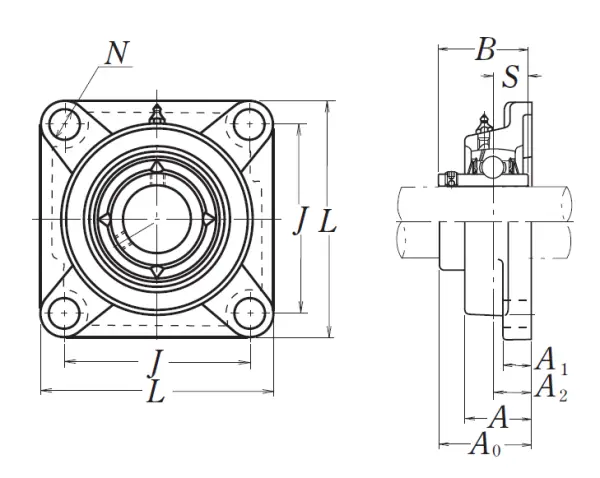

Nominal Dimensions
d
105
mm
Bore diameter
L
310
mm
Overall length
J
242
mm
Distance between attachment bolts
N
38
mm
Diameter of attachment bolt hole
A2
59
mm
Flange width
A1
32
mm
Flange width
A
94
mm
Base width
A0
127
mm
Overall width
B,B1,B2
112
mm
Width of inner ring
S
44
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M33
Bolt size
Basic Load Ratings
Cr
184
kN
Basic dynamic load rating
C0r
153
kN
Basic static load rating
Mass
mass
26
kg
Mass approx.
