NSK UCFS305D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UCFS305D1
Included products
Bearing
Housing
FS305D1
Housing

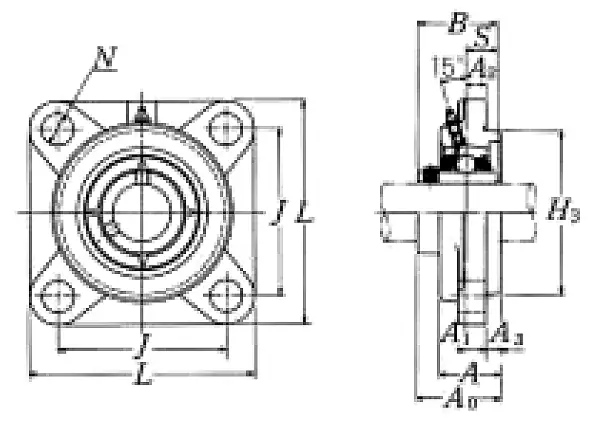

Nominal Dimensions
d
25
mm
Bore diameter
L
110
mm
Overall length
H3
80
mm
Outer diameter of Spigot Joint
J
80
mm
Distance between attachment bolts
A3
7
mm
Height of of Spigot Joint
A2
9
mm
Flange width
A1
13
mm
Flange width
A
29
mm
Base width
A0
39
mm
Overall width
B,B1,B2
38
mm
Width of inner ring
S
15
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M14
Bolt size
Basic Load Ratings
Cr
21.2
kN
Basic dynamic load rating
C0r
10.9
kN
Basic static load rating
Mass
mass
1.2
kg
Mass approx.
