NSK UCFS307D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UCFS307D1
Included products
Bearing
Housing
FS307D1
Housing

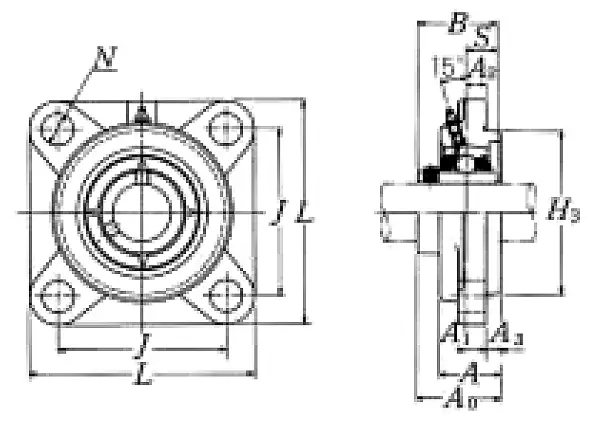

Nominal Dimensions
d
35
mm
Bore diameter
L
135
mm
Overall length
H3
100
mm
Outer diameter of Spigot Joint
J
100
mm
Distance between attachment bolts
A3
9
mm
Height of of Spigot Joint
A2
11
mm
Flange width
A1
16
mm
Flange width
A
36
mm
Base width
A0
49
mm
Overall width
B,B1,B2
48
mm
Width of inner ring
S
19
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M16
Bolt size
Basic Load Ratings
Cr
33.5
kN
Basic dynamic load rating
C0r
19.1
kN
Basic static load rating
Mass
mass
2.3
kg
Mass approx.
